| ชื่อแบรนด์: | JUTAI |
| เลขรุ่น: | GL- WLAN |
| ขั้นต่ำ: | สนับสนุน 1-10 pcs สําหรับตัวอย่าง |
| ราคา: | ต่อรองได้ |
| รายละเอียดการบรรจุ: | กล่องกระดาษ |
| เงื่อนไขการจ่ายเงิน: | T/T, Western Union, Wechat, Alipay, เพย์พาล |
|
|
|
| GL-WLAN-01 | GL-WLAN-02 | GL-WLAN-03 |
JUTAI GateLink Smart Controller & Camera Core Parameter Summary
General Controller Specifications (All Models)
All industrial-grade controllers support WiFi + BLE dual-mode communication, MQTT protocol and OTA remote firmware update, with built-in mobile APP/Bluetooth remote control and security alarm functions. They feature a wide operating temperature of -30°C ~ 80°C for stable operation in harsh environments.
Model-Specific Controller Parameters

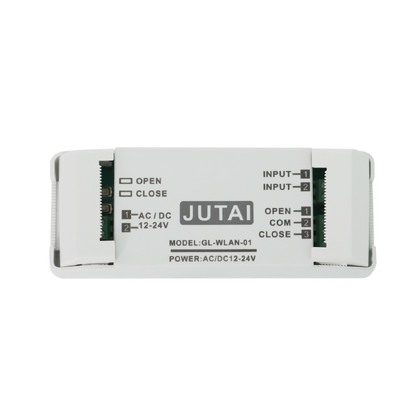

GL-WLAN-01 (2-Relay WiFi Controller)
Power input: DC 12-24V/1A (5V customizable)
Relay output: 2 channels with shared common terminal
Load rating: DC 30V/2A, AC 220V/1A
Dimensions: 109.5 × 41.1 × 25.6 mm

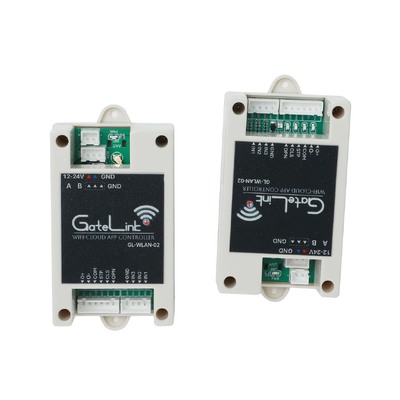

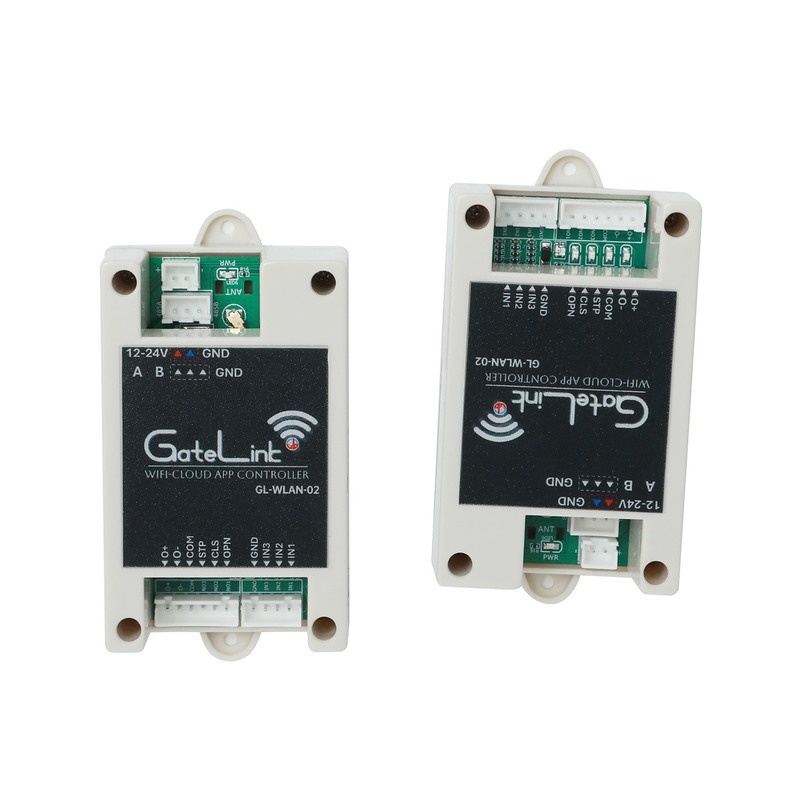

GL-WLAN-02 (4-Relay WiFi Controller)
Power input: DC 12-24V/1A (5V customizable)
Expansion port: 1 × RS485
Relay output: 3 shared common channels + 1 independent channel
Load rating: DC 30V/1A, AC 125V/1A
Dimensions: 96.5 × 50 × 31.4 mm
GL-WLAN-03 (4-Relay 4G Controller)
Power input: DC 12-48V (max peak voltage 60V)
Communication: 4G + WiFi + BLE triple-mode
Expansion ports: 1 × CAN, 1 × RS485, 2 × RS232
Input: 4-channel isolated digital input
Relay output: 4-channel independent NO/NC output
Load rating: DC 30V/10A, AC 220V/10A (high-power support)
Dimensions: 135 × 80 × 40 mm
Camera Pixel Parameters
GL-200H26-IR WiFi Camera: 2.0 Megapixels (2MP)
GL-R300H265-IR WiFi Camera: 3.0 Megapixels (3MP)
JTNP-ZS500W(D)-RA5 LPR Camera: 1080P HD resolution
|
